P270-3000PL TOTALINE – Duct Smoke Detector

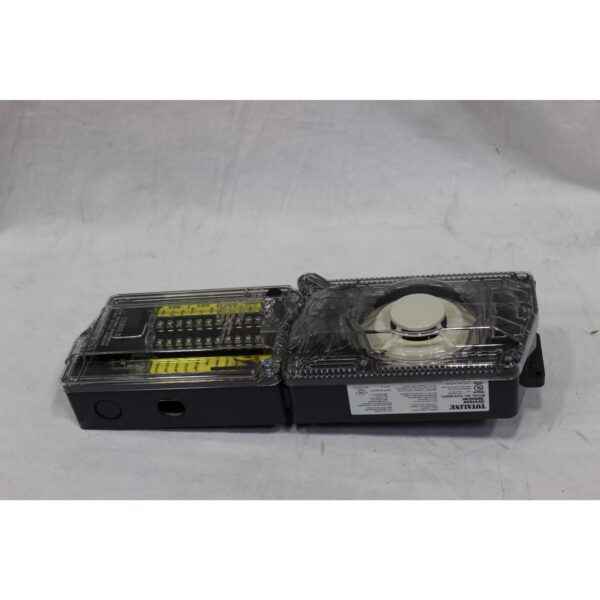

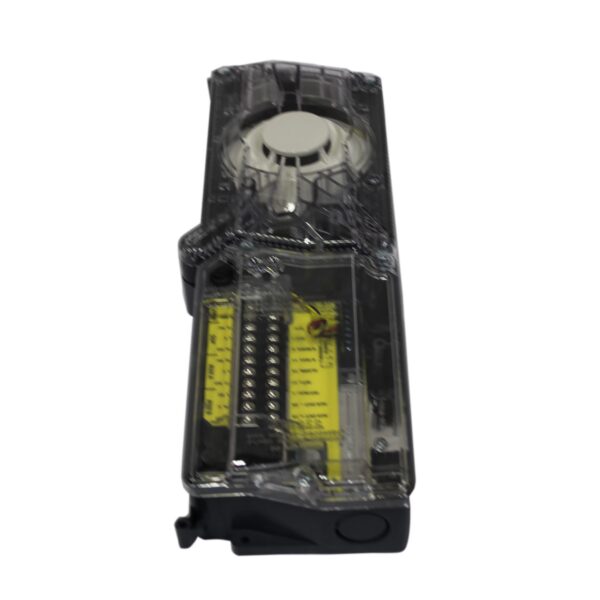

Description P270-3000PL TOTALINE – Duct Smoke Detector – E:Mail: [email protected] to confirm availability or for volume discounts The Totaline® P270-3000PL 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork. This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of -4°F to 158°F, and a humidity range of 0 to 95 percent (non-condensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance. Photoelectric, integrated low-flow technology Air velocity rating from 100’/min. to 4,000’/min. (0.5 m/s to 20.32 m/sec) Versatile mounting options: square or rectangular configuration Plug-in sensor offers superb false alarm immunity and the latest sensor technology Broad ranges for operating temperature (-4°F to 158°F) and humidity (0% to 95% non-condensing) Attributes Approvals CSA Listed; UL Listed; UL Recognized Audible Alert NO Battery Backup NO Brand TOTALINE® Color Black, White Country of Origin MEX Cubic Measurement 0.0966 Cycle/Hertz 50/60 Hz Dimensional Weight 2 Display NO GTIN 00781897326205 Hush Button NO Interconnection Capability NO Locking Pin NO Mounting Type Round or rectangular ductwork mount Operating Temperature Range (-4F to 158F) Power Source Hard wired Prop 65 NO Test Button NO Type Photoelectric UOM EA UPC 781897326205 Visual Alert NO Voltage 24/120 VAC/20/29 VDC
