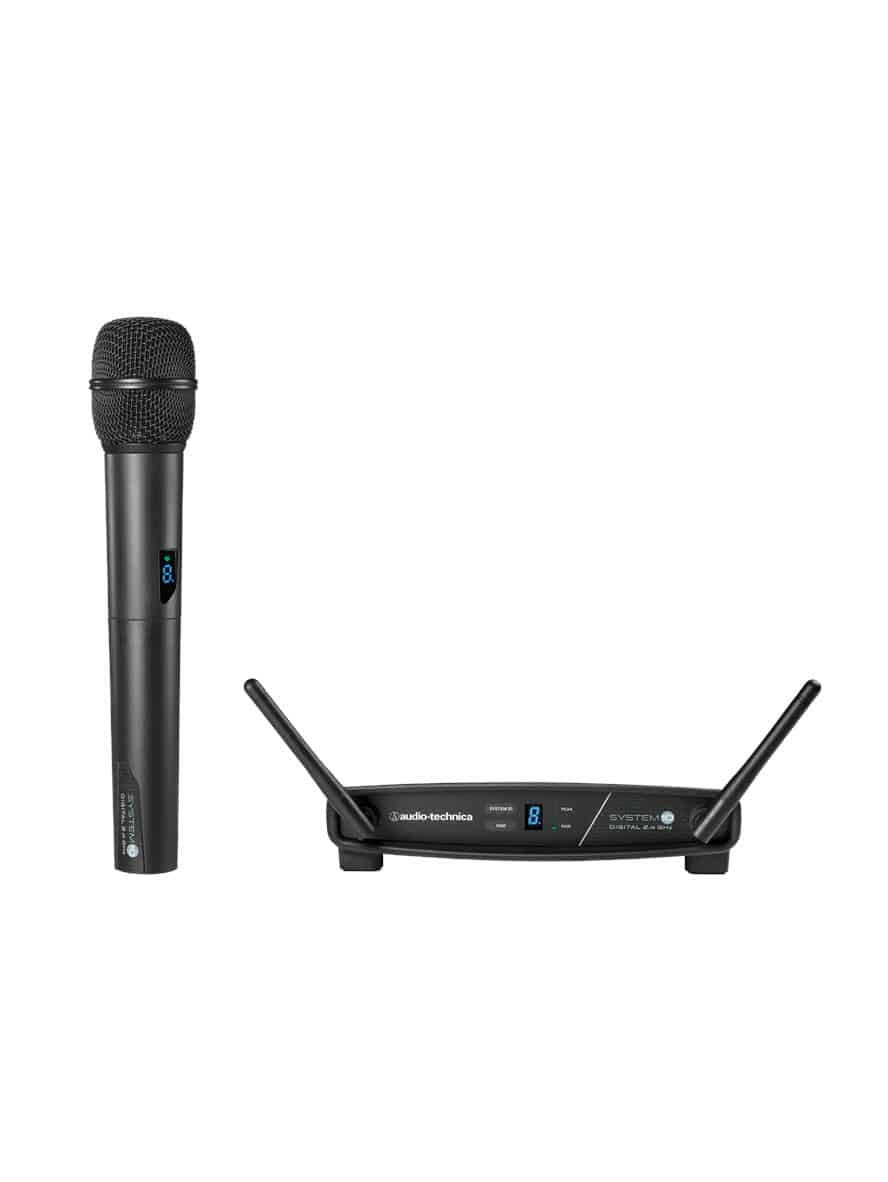

Audio Technica ATW-1102 System 10 Digital Wireless Microphone System

DescriptionATW-1102 System 10 Digital WirelessATW-R1100 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.Specifications Overall System Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz) Frequency Response 20 Hz to 20 kHz Depending on microphone type Operating Range 30 m (100′) typical Open range environment with no interfering signals Total Harmonic Distortion 7 hours (alkaline) Depending on battery type and use pattern Dimensions 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter Net Weight 280 grams (9.9 oz) without batteries Accessories Included AT8456a Quiet-Flex™ stand clamp Body Pack RF Power Output 10 mW Battery Life >7 hours (alkaline) Depending on battery type and use pattern Battery Type Two 1.5V AA not included Dimensions 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D Input Connections Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS 9V Net Weight 100 grams (3.5 oz) without batteries Spurious Emissions Following federal and national regulations Receiver Receiving System Diversity (frequency/time/space) Maximum Output Level XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: 6 dBV Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply Operating Temperature Range 40° F (4° C) to 110° F (43° C) Dimensions 190.0 mm (7.48″) W x 46.2 mm (1.82″) H x 128.5 mm (5.06″) D Weight 290 grams (10.2 oz) Accessories Included Power supply
